333kVA Single Phase Pole Mounted Distribution Power Transformer
| Brand | Vziman |
| Model NO. | 333kVA Single Phase Pole Mounted Distribution Power Transformer |
| Rated frequency | 50/60Hz |
| Rated capacity | 333kVA |
| Series | D |
Description
The Oil-Immersed Transformer is a high-performance power distribution solution designed for efficiency, durability, and versatility. Built with premium copper windings and an EE-shaped core, it ensures low energy loss and reliable operation in various electrical applications.
This transformer supports both 50Hz and 60Hz frequencies, making it suitable for global power systems. It is pole-mounted, saving installation space while delivering stable performance for single-phase, distribution, rectifier, and combined transformer setups.
Certified under ISO9001, CCC, and backed by a Type Test Report, it meets stringent quality and safety standards. Ideal for industrial and commercial use, the D11-333KVA combines advanced engineering with cost-effective power management, ensuring long-term reliability.
Features
-
333kVA capacity:Robust power handling
-
Copper windings:Enhanced conductivity & efficiency
-
Low-loss design :Energy-saving operation
-
Pole-mounted:Space-efficient installation
-
50Hz/60Hz compatible:Global adaptability
-
ISO9001 & CCC certified:Trusted quality assurance
-
30-day delivery:Fast and reliable supply
Parameter
| Rated capacity (KVA) | 333KVA |
| Input voltage (KV) | 333KVA |
| Output voltage(V) | 480-240V |
| Frequency(Hz) | 60Hz |
| No load current(%) | 1.2% |
| Cooling mode | ONAN |
| Number of windings | 1 |
| Phase number | 1 |
| High pressure gear | +1,2x2.5% |
| Cooling medium | Mineral oil 25 |
| No load loss(w) | 650w |
| Load loss(w) | 3650w |
| Short circuit voltage(%) | 2.5% |
| Oil surface temperature rise(K) | 55 |
| Winding temperature rise(K) | 65 |
| Lightning impulse withstand voltage(KV) | HV 95 / LV / |
| Power frequency withstand voltage(KV) | HV 35 / LV 5 |
Related Products
-
Durable H61 H59 Distribution Transformer for Sale-5.5 kV 13.2kV 15kV 33kV
-
High Voltage H61 H59 Distribution Transformer-6kV 6.6kV 7.2kV 10kV
-
HT/BT transformateurs de distribution
-
15kVA Single-Phase Pole Mounted Distribution Transformer
-
Oil-immersed distribution transformers Manufacturer-30kV 33kV 35kV 36.5kV 38.5kV
-
Customization 11kV 20kV 24kV 33kV Three Phase Oil Immersed Distribution Transformer
-

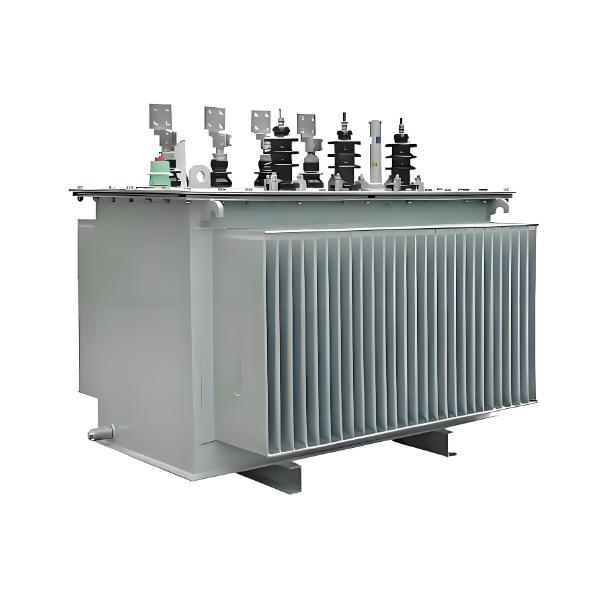

6.3kV 10.5kV 11kV Oil-Immersed Amorphous Alloy Power distribution Transformer
-

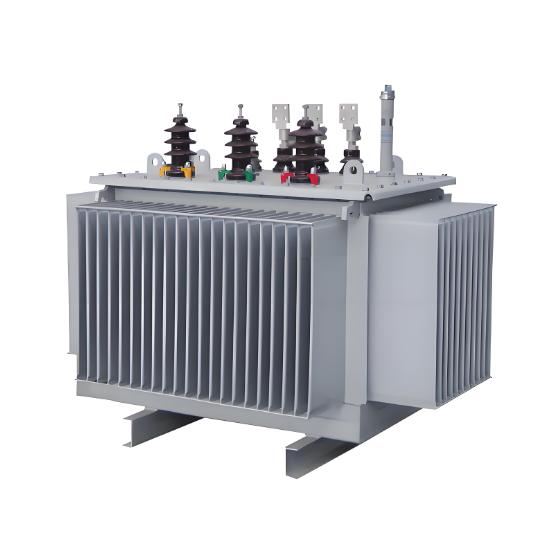

6kV 7.2kV 12kV Low-loss Oil-immersed Power distribution transformer
-

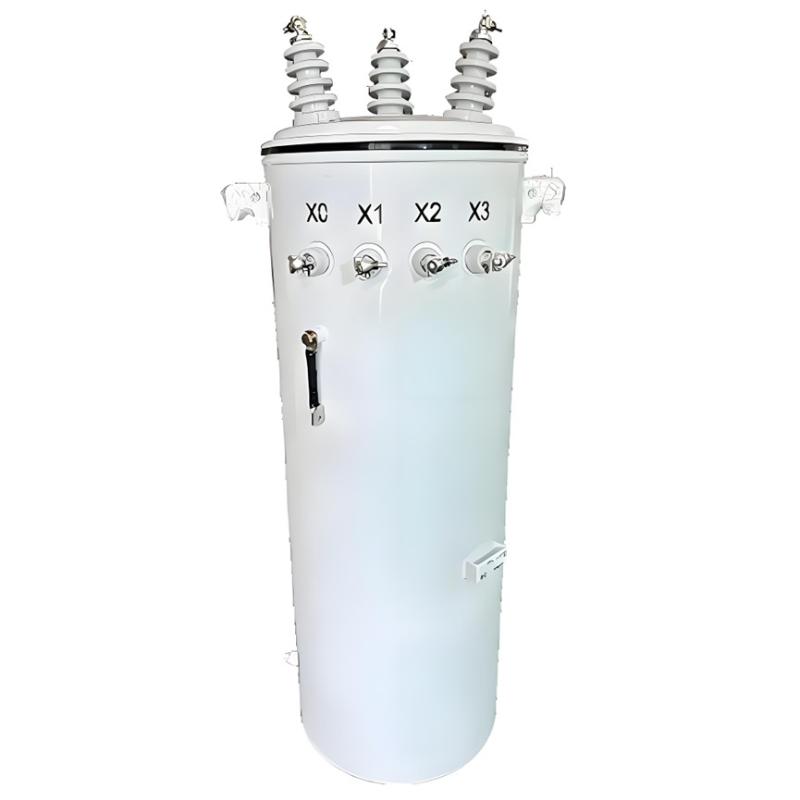

45KVA Three Phase Power Pole Mounted Distribution Transformer Oil Immersed 12000V
-

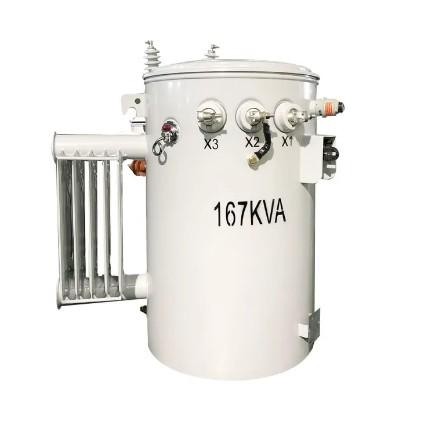

167kva Single Phase Pole Mounted Transformer CSP Type oil immersed distribution Step Down 4160v To 480v
