Durable H61 H59 Distribution Transformer for Sale-5.5 kV 13.2kV 15kV 33kV

H61 H59 Distribution Transformer Product Description

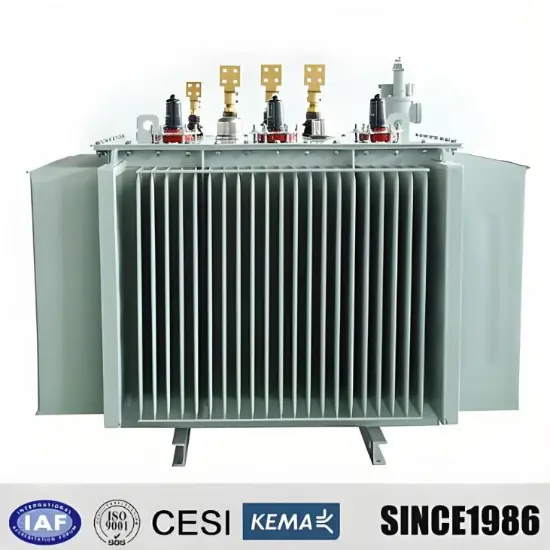

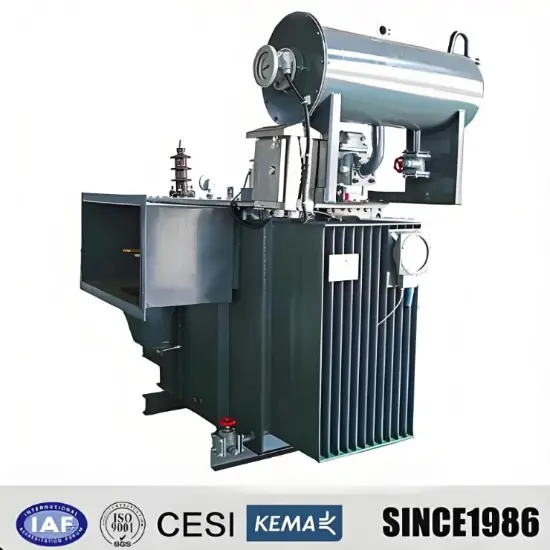

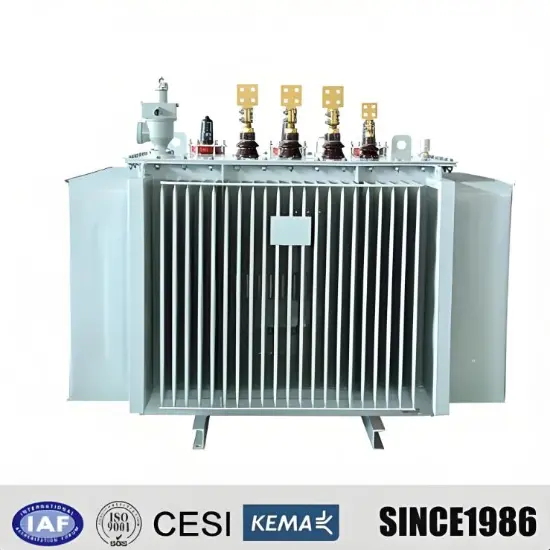

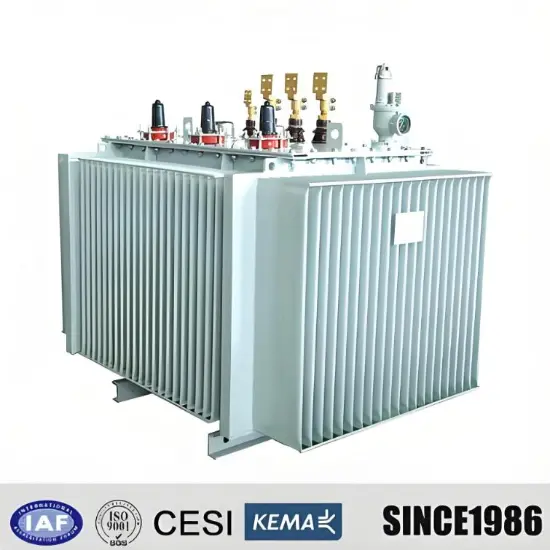

Medium Voltage Three Phase Oil-Immersed Distribution Transformer
H61 H59 Distribution Transformer Oil-immersed with power rating from 25 to 2500 kVA and Voltage 6-36/0,4 (0.23)kV. In 50/60 Hz power transmission and distribution system for power supply and lighting in industrial and agricultural field. H6 H59 Distribution transformer is produced with nominal Voltage in primary winding 6 up to 36 kV. Nominal Voltage in secondary winding is 0,4 or 0,23 kV. Scheme and connection group of windings U/Un-0 or D/Un-11, etc.

On the customer demand it is possible to make transformers with different connection of the Voltage s and other construction solution. Regulating the Voltage is made as a result of moving the switch, by the transformer detached from the net both high (HV) and low (LV) Voltages.

The Voltage is being regulated on the side of HV for ±2x2,5% value from nominal value. Exterior introductions HV and LV are removable and passers-by are made from china insulators. At great current 1000 A and more on the hard core current are contact clamps screwed properly with the spatula which connecting the track or the cable attachment assures. The expandability of oil assures appropriate works of the transformer at different weather conditions and fluctuations of the temperature. The dehumidifier is installed to provide dry air in transformer. For measuring the temperature of upper layers of oil on the casing a thermometer is installed. Transformers with power rating from 400 to 2500 kVA are occupied with wells to install in base.

H61 H59 Distribution Transformer Features

•  Energy saved :Compared with old type S7, no-load loss decreases 10.25% averagely and on-load current decreases 37.9%, which means 18.39% operation cost is reduced.

•  Long-term reliable service life:Fully enclosed transformer tank and rim shall be bolted together or welded firmly. Isolation between oil and air keeps insulation away from moisture, which lowers insulation aging and improves service life.

• Free from untanking:Free from untanking before operation, so its cost is saved.

•  Free from maintenance

•  Low noise:Impacted structure in design, new material and new technology adopted and low noise.

• Small size and artistic appearance:Owing to the corrugated plate used for radiation, oil volume is changed by adjustment and compensation through expansion and shrinkage of corrugated plate when the temperature of oil is changed. Corrugated tank is small size in good looking.

H61 H59 Distribution Transformer Transformer order information

a. Rated capacity
b. High and low rated voltage
c. Vector group
d. Impedance voltage
e. Tapping range
f.  Frequency
g. Other(special)require
H61 H59 Distribution Transformer Main Technical Datas：
Some of these earthing transformers cover voltage levels including：3.3 kV 5.5 kV  6 kV 6.6 kV 7.2 kV 10kV 10.5kV 11kV 13.2 kV 13.8 kV 15kV 17.5 kV 20 kV  22kV 24kV  30 kV 33kV 34.5kV 35 kV 46 kVetc. and customization is available.

Product Photo

Our main products are including switchgear, ring main unit, transformer, load break switch, SF6/vacuum circuit breaker, substation, auto-recloser, voltage regulator, automatic sectionalizer, tap-changer, CT and PT etc.

Many of these products have the certification reports of the international authoritative KEMA Netherlands and CESI Italy.

We have a professional technical team which can provide you with full design solution and technical support.

Work shop

Project

Shipping

Attention

1. The payment term: We accept TT,30% deposit and 70% balance against copy of BL.

2. The delivery time: Usually it will take about 15-20 days.

3. The standard of package: Usually use strong plywood case for protection.

4. The logo: If you have good quantity, it absolute no problem to do OEM.

5. Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..

6. Warranty: in 12 month since BL date.
