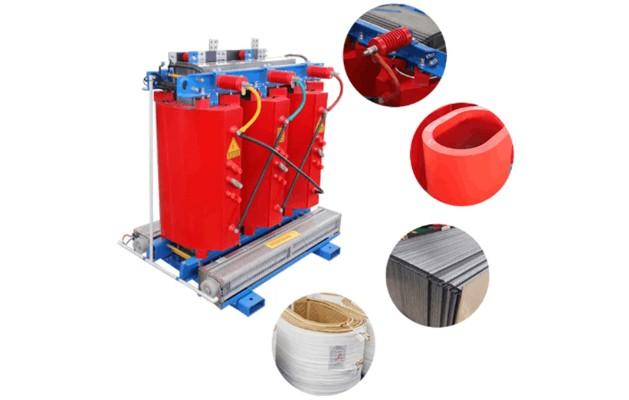

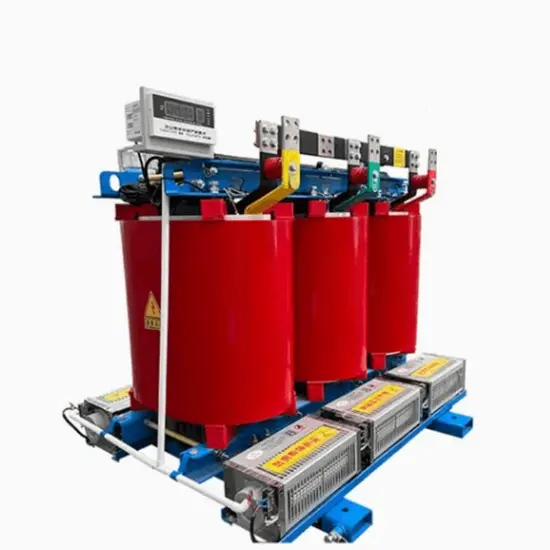

20kVA 3 Phase Industrial Dry-Type Earthing Transformers

Documentation Resource Library

Key attributes

Brand	Vziman
Model NO.	20kVA 3 Phase Industrial Dry-Type Earthing Transformers
Rated frequency	50/60Hz
Rated capacity	50kVA
Series	SCB10

Product descriptions from the supplier

Description

SG (B) 10 Series Non-encapsulated Industrial Dry-type Earthing Transformers

Industrial Dry-type Earthing Transformers adopt the special process technology of Europe industrial dry-type earthing transformers to ensure that the products fully meet the requirements such as fire prevention, waterproof, environmental protection.
By optimizing the structure of the high-voltage coil, the series improve the distribution of voltage and capacitance between layers so as to improve the product's ability to withstand atmospheric overvoltage, operating overvoltage as well as the electric field distribution. It is the ideal product for distribution systems and widely used in the subway, shipbuilding, mining, chemical, power companies and personnel-intensive buildings as well as other special requirements of the occasion for safety.

Industrial Dry-type Earthing Transformers Product Specifications

Transformer Type	Resin Cast Dry Type
Model	SCB10-50/10
Number of Phase	Three Phase
Winding Type	Two Winding
Winding Material	Aluminum/Copper
Rated Capacity	50kVA
High Voltage	10/11kV
Low Voltage	0.4kV
Tapping Range	±2x2.5%
Impedance Voltage	4%
Load Loss (120°C)	1kW
No-load Loss	0.27kW
No-load Current	2%
Frequency	50/60Hz
Connection Group	Yyn0/Dyn11
Cooling Method	ANAF
Insulation Class	F
Thermal Class	F1
Protection Level	IP00/IP20/IP30
Climatic Class	C2
Environmental Class	E2
Temperature Rise	100K
Operation Altitude	≤1000m
Size	950x750x915mm
Weight	575kg
