35KV 100A Zig Zag Pad Mounted Grounding Transformer

Product Description

Zig Zag Grounding Transformer 5000 KVA Pad Mounted Liquid Filled 35KV 100A Continuous Meets DOE 2016 CSA ANSI IEEE Standards

The zig-zag transformer is typically the least costly method that can be used as a high impedance ground system.WINLEY's zig zag grounding transformers are designed with exceptional quality and attention to detail, meeting a wide range of specifications and applications. These grounding transformers are designed to perform in the most rigorous industries and last for decades.

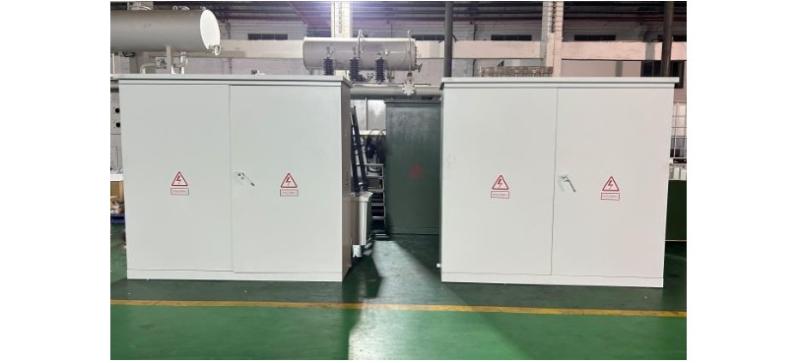

Zig Zag Grounding Transformer Factory product photos

Zig Zag Grounding Transformer Main data

Reasons for the Necessity of Grounding Transformers

• They serve as a measuring point for monitoring faults.
• They help reduce the intensity of transient over-voltages that may arise during a ground fault re-strike.
• They may include a low-voltage auxiliary winding, allowing them to act as a local power supply for substations.
• They facilitate the connection of phase-to-neutral loads when necessary.
• By offering a low-impedance route to the ground, they assist in keeping the system neutral near ground potential.
• They are employed in wind farms to protect against faults in ungrounded cables.
• They can supply ground-fault current during line-to-ground faults.

Zig Zag Grounding Transformer Factory Tests

• Winding Resistance Test
• Insulation Resistance Test
• Voltage Ratio Error Test
• Short-circuit Impedance Test
• No-load Loss (Wattage) Test
• Load Loss (Wattage) Test
• Induced Voltage Withstand Test
• Separate Source Voltage Withstand Test
• Pressure Integrity Test
