Single/Three Phase Power Pole Mounted Distribution Transformer 11KV 13.2KV 13.8KV
Key attributes
| Brand | Vziman |
| Model NO. | Single/Three Phase Power Pole Mounted Distribution Transformer 11KV 13.2KV 13.8KV |
| Rated voltage | 13.8 kV |
| Rated frequency | 50/60Hz |
| Rated capacity | 100kVA |
| Series | D |
Product descriptions from the supplier
Description
Power Distribution Transformer Product Introduction
Vziman is a professional supplier of Power distribution transformer, specializing in high-performance Pole Mounted distribution transformer that includes both single-phase and three-phase models. Our Pole Mounted distribution transformer is engineered to shorten low-voltage distribution lines, cut line losses, and enhance overall power supply quality. As a specialized Power distribution transformer, it features an energy-efficient coil core design that balances operational stability with reduced energy consumption.
This Pole Mounted Distribution Transformer has a compact footprint, which lowers infrastructure investment and reduces the low-voltage power supply radius, cutting low-voltage line losses by over 60%. The Power distribution transformer uses a fully sealed structure, delivering strong overload capacity, reliable continuous operation, and minimal maintenance requirements. It is ideal for rural power grids, remote mountainous areas, scattered villages, agricultural production, lighting, and daily electricity use, and also supports energy-saving upgrades for railway and urban power grids.
All our Power distribution transformer models are built with advanced technology and high-quality materials, ensuring the Pole Mounted distribution transformer delivers long-term reliability and a long service life. Every unit undergoes rigorous full acceptance testing, and we have maintained a 0 fault rate record for over 10 years. Our oil-immersed Pole Mounted distribution transformer complies with IEC, ANSI, and other major international standards, ensuring compatibility with global power grid systems.
Pole Mounted Distribution Transformer Core Product Features
- High-Efficiency Energy Saving:The Power distribution transformer uses an optimized coil core design, and the Pole Mounted distribution transformer reduces the low-voltage supply radius to cut line losses by over 60%, improving energy utilization in power distribution systems.
- Fully Sealed, Reliable Operation:The Pole Mounted distribution transformer features a fully sealed structure that resists dust, rain, and outdoor elements, providing strong overload capacity and stable long-term operation with minimal downtime.
- Compact & Cost-Effective:The Power distribution transformer has a small volume and lightweight design, eliminating the need for complex civil engineering. This lowers infrastructure investment and speeds up project deployment for the Pole Mounted distribution transformer.
- Low Maintenance:The Pole Mounted distribution transformer requires only routine inspections, with no frequent disassembly needed, significantly reducing long-term operation and maintenance costs for the Power distribution transformer.
- Durable & Long-Lasting:Built with premium materials and advanced manufacturing, the Power distribution transformer delivers a service life well above industry averages, ensuring the Pole Mounted distribution transformer remains stable for decades.
Pole Mounted distribution transformer Scope of Supply
- Product: Single phase pole mounted transformer
- Phase: Single
- Rated Power: Up to 167KVA
- Primary Voltage: Up to 13.8KV
- Product: Three phase pole mounted transformer
- Phase: Three
- Rated Power: Up to 1000KVA
- Primary Voltage: Up to 35KV
Power distribution transformer Technical spec for single phase pole mounted transformer
|
Rated Power |
Primary Voltage |
Secondary Voltage |
No load loss (W) |
Load loss (W) |
|
3 KVA |
6KV 6.66KV. 6.35KV 7.2KV 7.6KV 10KV 11KV 13.2KV 13.8KV |
120/240V 240/480V 139/277V 120/208V 600V |
9 |
45 |
|
5 KVA |
19 |
75 |
||
|
10 KVA |
36 |
120 |
||
|
15 KVA |
50 |
195 |
||
|
25 KVA |
80 |
290 |
||
|
37.5 KVA |
105 |
360 |
||
|
50 KVA |
135 |
500 |
||
|
75 KVA |
190 |
650 |
||
|
100 KVA |
210 |
850 |
||
|
167 KVA |
350 |
1410 |

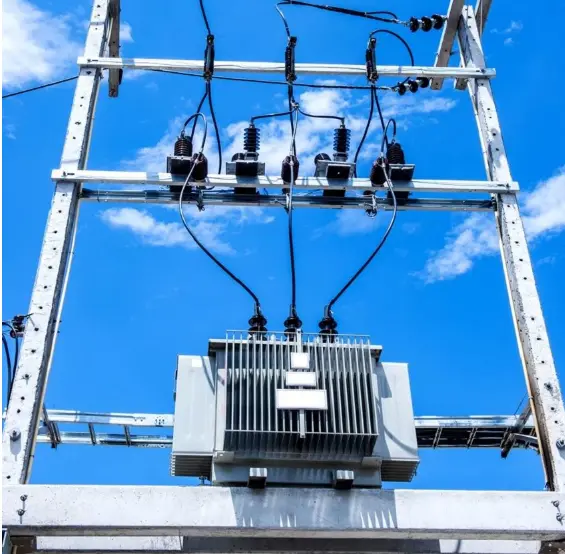

100 KVA Three phase Pole Mounted distribution transformer for Ecuador

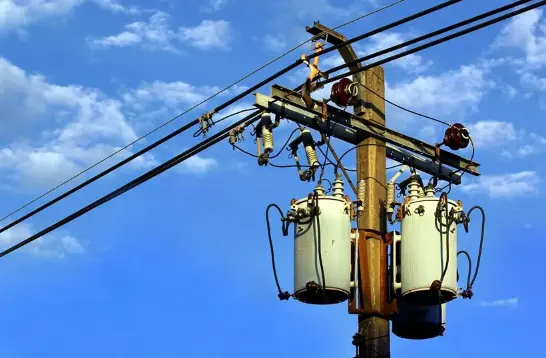

50 KVA Single-phase pole mounted distribution transformers for Philippines
Packing and delivery of single phase pole mounted distribution transformer
