HV compact prefabricated substation for distribution-6.3kV 10.5kV 13.2kV

  • HV compact prefabricated substation for distribution-6.3kV 10.5kV 13.2kV
Key attributes
Brand Vziman
Model NO. HV compact prefabricated substation for distribution-6.3kV 10.5kV 13.2kV
Rated voltage 13.2kV
Rated frequency 50/60Hz
Rated capacity 315kVA
Series YBW
Product descriptions from the supplier
Description

HV Compact Prefabricated Substation Product Description：

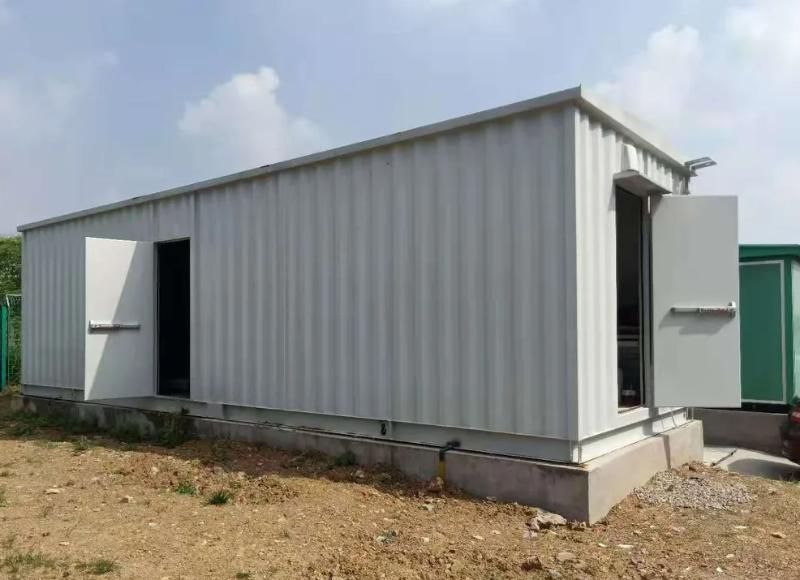

The YBW HV Compact Prefabricated Substation(European-style box transformer) is a compact all-in-one distribution unit integrating high-voltage, transformer, and low-voltage components. Engineered for power reception and distribution, it boasts a small footprint (1/10–1/5 the size of traditional civil substations of the same capacity), safe reliable operation, easy maintenance, and mobility—cutting design/construction costs significantly. Ideal for ring network, dual-power, or radial terminal systems, it is a modern solution for urban and rural substation upgrades.
Composed of three integrated functional compartments (high-voltage, transformer, low-voltage), the YBW HV Compact Prefabricated Substation offers flexible configurations. The high-voltage side supports multiple power supply modes and optional high-voltage metering. The transformer compartment accepts S11/S13 oil-immersed or SCB10/SCB11 dry-type transformers, paired with self-activating forced cooling and lighting. The customizable low-voltage compartment delivers power distribution, reactive compensation, metering, and more, optimizing power quality and management.
With anti-misoperation interlocking in the high-voltage compartment, optional transformer rails for easy access, and automatic lighting in all compartments, the unit ensures safe operation and hassle-free maintenance. Natural and temperature-controlled forced ventilation enables full-load transformer performance.
Its corrosion-resistant steel/aluminum alloy enclosure prevents rain and contaminants from entering, ensuring long-term outdoor use with excellent waterproof, dustproof, and anti-corrosion properties, plus a long service life and sleek finish.
HV Compact Prefabricated Substation Product Features：
  • Broad Voltage Compatibility：Supports 6.3kV/10.5kV/13.2kV high-voltage input, perfectly matching medium-voltage distribution network requirements for urban grids, industrial parks, and rural power system upgrades.
  • Compact & Space-Saving Design：Integrated all-in-one structure with a small footprint, occupying only 1/5–1/10 the area of traditional substations, and reducing on-site construction and land occupation costs significantly.
  • Factory Prefabricated & Fast Deployment：Fully assembled and tested in the factory; on-site installation only requires simple wiring connection, shortening the construction period and realizing rapid power supply.
  • Comprehensive Safety Protection：Equipped with overvoltage, overcurrent, short-circuit and lightning protection modules, and built-in anti-misoperation interlocking functions, ensuring safe and stable operation in complex distribution scenarios.
  • Customizable Configuration：Flexible options for transformer types (oil-immersed/dry-type), capacity (30kVA–2500kVA) and low-voltage output, meeting the personalized power distribution needs of different projects.
  • Rugged & Durable Structure：Adopts corrosion-resistant enclosure with IP54 protection grade, adapting to harsh outdoor environments such as rain, dust and extreme temperatures (-30℃~+50℃) for long-term reliable use.

HV Compact Prefabricated Substation Product Parameters：

Rated capacity
(kVA)		 Voltage combinations The join group designator No-load loss
(W)		 Load loss
(W)		 Impedance voltage
(%)		 No-load current
(W)
High pressure(kV) Taps(%) Low voltage(kV)
30 6/6.3/10/10.5/11 ±5%/±2*2.5 0.4 Dyn11/Yyn0 80 600/630 4.0 2.3
50 100 870/910 2
63 110 1040/1090 1.9
80 130 1250/1310 1.9
100 150 1500/1580 1.8
125 170 1800/1890 1.7
160 200 2200/2310 1.6
200 240 2600/2730 1.5
250 290 3050/3200 1.4
315 340 3650/3830 1.4
400 410 4300/4520
500 480 5100/5410 1.2
630 570 6200 4.5 1.1
800 700 7500 1
1000 830 10300 1
1250 970 12000 0.9
1600 1170 14500 0.8

 HV Compact Prefabricated Substation Operating Conditions

  • Altitude：Installation altitude shall not exceed 2,000 meters; derating operation is required for applications above this altitude.
  • Ambient Temperature：Working temperature range: -40℃ ~ +45℃; can withstand short-term temperature fluctuations within ±5℃.
  • Relative Humidity：Daily average relative humidity ≤ 95% (at 25℃); monthly average relative humidity ≤ 90%; no condensation allowed inside the substation.
  • Power Supply Voltage：The input voltage waveform shall be approximately sinusoidal; the three-phase voltage unbalance degree shall not exceed 3%.
  • Installation Environment：Installed in outdoor or indoor dry places, free from severe dust, corrosive gas, explosive mixtures, and violent vibration; ground inclination ≤ 3°.

FAQ
Q: How does the HV Prefabricated Substation ensure safe operation and easy maintenance?
A:

The high-voltage compartment is equipped with anti-misoperation interlocking functions; optional transformer rails are available for easy access; all compartments are fitted with automatic lighting devices. Additionally, it adopts natural and temperature-controlled forced ventilation to ensure the transformer operates at full load, further guaranteeing safe operation and hassle-free maintenance.

Q: What advantages does the HV Prefabricated Substation have in terms of durability and environmental adaptability?

A: Its enclosure is made of corrosion-resistant steel or aluminum alloy, which can effectively prevent rainwater and contaminants from entering. With IP54 protection grade, it has excellent waterproof, dustproof, and anti-corrosion properties, adapting to harsh outdoor environments and ensuring long-term reliable use, a long service life, and a sleek appearance.

Q: What application scenarios is the HV Prefabricated Substation suitable for?

A: It is widely used in urban power grid transformation, industrial and mining enterprises, residential areas, industrial parks, and rural power system upgrades. It is also applicable to various energy infrastructure scenarios such as wind farms, photovoltaic power stations, hydropower stations, nuclear power plants, hub substations, important converter stations, backbone power grids, and key transmission channels.
