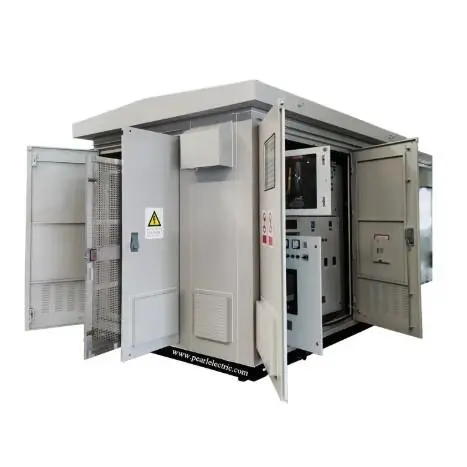

High Performance 13.8kV 14.5kV 15kV Step up Compact Transformer Substation for New Energy

  • High Performance 13.8kV 14.5kV 15kV Step up Compact Transformer Substation for New Energy
  • High Performance 13.8kV 14.5kV 15kV Step up Compact Transformer Substation for New Energy
Key attributes
Brand Vziman
Model NO. High Performance 13.8kV 14.5kV 15kV Step up Compact Transformer Substation for New Energy
Rated voltage 15kV
Rated frequency 50/60Hz
Rated capacity 2500kVA
Series YB
Product descriptions from the supplier
Description

15kV Compact Transformer Substation Product Description

The 15kV Compact Transformer Substation is a compact power equipment that integrates high-voltage switchgear, transformer and low-voltage power distribution device. It is usually installed in a metal or non-metal box to form a complete power distribution system. This 15kV Compact Transformer Substation is mainly used to convert the electric energy of the high-voltage power grid into low-voltage electric energy suitable for users, and realize the distribution and control of electric energy.
As the global energy consumption increases sharply, the consumption of conventional resources such as coal, oil, and natural gas is accelerating. People's awareness of the importance of energy saving, environmental protection and pollution-free development is gradually increasing. With technological advances, the utilization of new energy and renewable energy has become an inevitable sustainable energy path worldwide. Wind energy and solar energy, as inexhaustible clean energy sources, have achieved rapid development in China.
The vigorous development of China's wind power generation and solar photovoltaic power generation market has promoted the rapid formation of related supporting industry chains, and the 15kV Compact Transformer Substation has become a key component in this industrial chain due to its compact structure and integrated performance.
On the basis of the design and manufacturing technology of Pad-mounted transformer and Prefabricated substation, Vziman Electric, as one of the main suppliers in China's wind power generation and solar photovoltaic power generation step-up equipment market, has developed new Electrical Power Compact Transformer Substation for new energy power generation. The development fully considers the matching requirements of wind turbines, solar photovoltaic inverters, and relevant power transmission and distribution networks for step-up equipment.
These 15kV Compact Transformer Substation have been widely applied in major power generation companies and under various environmental conditions. Now, we are committed to bringing our mature technology and high-quality 15kV Compact Transformer Substation to all parts of the world, contributing to the global low-carbon environmental protection cause.

15kV Compact Transformer Substation Product Parameters

Capacity 630-2500kVA
Frequency 60 / 50Hz
Voltage (HV)  15kV or customized
Voltage (LV)  0.4kV or customized
Impedance 4%-8%
Connections (Vector Group) Dyn11
Tapping Range ±2×2.5%
Core materials Silicon Steel
Winding materials Aluminum or copper
Lightning Impulse Withstand Voltage IEC standard
AC withstand voltage IEC standard
Reference standards IEC 60076-11
Temperature Rise class H-class
Temperature Rise 50/55K
Cooling method ONAN/ONAF
Temperature 50

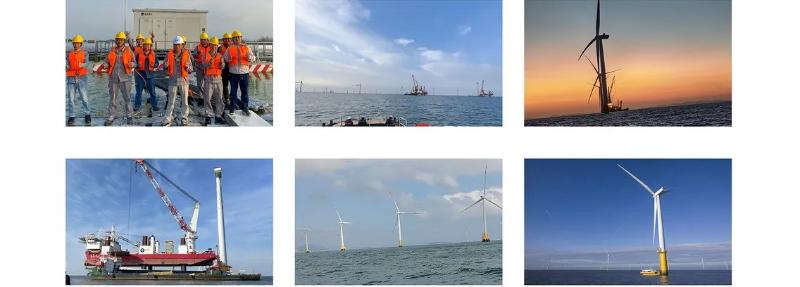

15kV Compact Transformer Substation Offshore Operations


FAQ
Q: What are the core advantages of the 15kV Compact Transformer Substation?
A:

It has the characteristics of compact structure and high integration. These advantages make it become a key component in the supporting industrial chain of new energy power generation.

Q: On which technologies is the new energy-oriented 15kV Compact Transformer Substation developed?

A: Vziman Electric developed it on the basis of the design and manufacturing technology of Pad-mounted transformer and Prefabricated substation, fully considering the matching requirements of wind turbines, solar photovoltaic inverters and relevant power transmission and distribution networks for step-up equipment.

Q: In which fields has the 15kV Compact Transformer Substation been widely applied?

A: It has been widely used in major power generation companies and under various environmental conditions, especially in the field of new energy power generation such as wind power and solar photovoltaic power generation.

Q: What is the application prospect of this substation?

A: With the rapid development of global new energy industry, the demand for this substation will continue to grow. The manufacturer is committed to bringing its mature technology and high-quality products to all parts of the world to contribute to the global low-carbon environmental protection cause.
