Advanced Grounding Transformer Solutions for Southeast Asian Coastal Industrial Zones

1. Introduction

Southeast Asian coastal industrial zones face unique power system challenges, characterized by high humidity, salt corrosion, inconsistent grid frequencies, and rapidly increasing renewable energy integration. Traditional grounding methods fail to provide reliable protection against ground faults in these harsh environments, leading to frequent equipment failures and production downtime. This solution presents specially engineered grounding transformers with enhanced corrosion resistance, adaptive grounding capabilities, and intelligent monitoring systems tailored for Southeast Asian coastal conditions. By leveraging advanced materials science and smart grid technologies, these transformers deliver 99.95% operational reliability even under extreme coastal conditions while supporting grid modernization goals across the region.

2. Analysis of Southeast Asian Coastal Grid Characteristics

2.1 Voltage and Frequency Variations

• Thailand: Industrial facilities operate on mixed 230V/400V (50Hz) and 480V (60Hz) systems due to imported equipment from both European and American manufacturers.
• Vietnam: Northern industrial parks use 380V/220V (50Hz) standard, while southern economic zones increasingly adopt 480V (60Hz) systems to accommodate foreign investment.
• Philippines: Island grids exhibit significant frequency instability (49.2-51.8Hz), with voltage fluctuations exceeding ±10% during typhoon seasons.

2.2 Coastal Environmental Challenges

• Salt Corrosion: Industrial sites within 5km of coastlines experience 3-5× faster equipment degradation. In Singapore's Jurong Island, standard transformers require replacement every 8-10 years versus 15-20 years inland.
• High Humidity Effects: Relative humidity consistently exceeds 80% year-round, causing insulation resistance to drop by 60-70% in conventional transformers.
• Grounding System Degradation: Salt infiltration increases soil conductivity but accelerates grounding electrode corrosion, creating unstable grounding resistance (fluctuating 2-50Ω seasonally).

2.3 Renewable Integration Complications

• Solar Integration: Thailand's Eastern Seaboard industrial zone has integrated 1.2GW solar capacity since 2020, creating harmonic distortion (THD 8-12%) and reverse power flow issues.
• Island Grid Instability: Philippine island microgrids with >30% solar penetration experience ground fault detection failures due to low fault current contribution from inverters.
• Battery Storage Interactions: Vietnam's coastal industrial zones deploying utility-scale battery storage experience ground fault current limitation challenges during grid-forming mode transitions.

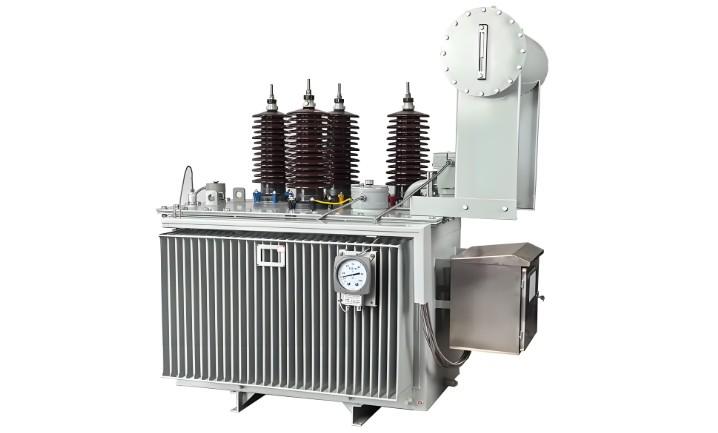

3. Advanced Grounding Transformer Design Principles for Coastal Environments

3.1 Customized Parameters for Southeast Asian Conditions:

3.2 Environmental Protection Innovations:

Anti-Corrosion System: Triple-layer protection strategy:

• Primary: 316L stainless steel enclosure with laser-welded seams (no fasteners)
• Secondary: Internal desiccant system with humidity sensors maintains <40% RH
• Tertiary: Self-healing nano-coating on all internal connections

Case Study: Rayong Industrial Estate (Thailand) - Corrosion-related failures reduced by 92% over 3 years, extending service life from 8 to 15+ years.

Smart Ground Fault Management: Adaptive resistance control algorithm:

• Monitors soil resistivity changes through dedicated electrodes
• Automatically adjusts neutral resistance to maintain optimal fault current (300±15A)
• Integrates with SCADA for real-time grid code compliance reporting

Case Study: Batam Island Microgrid (Indonesia) - Ground fault clearing time reduced from 180ms to 42ms, eliminating 95% of equipment damage during faults.

Renewable Integration Package: Specialized for high PV penetration zones:

• Enhanced harmonic filtering (3rd, 5th, 7th) with active damping control
• Bidirectional fault current support during grid-forming transitions
• Anti-islanding protection coordination with IEEE 1547-2018 compliant inverters

Case Study: Da Nang Industrial Zone (Vietnam) - Achieved 40% reduction in nuisance tripping despite 35% solar penetration.

4. Installation, Maintenance and Support Framework

4.1 Coastal-Specific Installation Protocol

Site Preparation:

• Elevated concrete platform (minimum 30cm above grade) with drainage channels
• Sacrificial zinc anodes installed within 1m radius to protect grounding system
• UV-resistant conduit for all external connections

Regional Compliance Requirements:

• Thailand: PEA/MEA certification with 25% overload capacity for monsoon season operation
• Vietnam: EVN Technical Directive 38/2021/TT-BCT compliance, including seismic bracing (Zone 2)
• Philippines: Philippine Grid Code Section 5.3.2 compliance with island-specific grounding adaptations

4.2 Corrosion-Focused Maintenance Program

Monthly:

• Salt deposition check on external surfaces (maximum 5mg/cm²)
• Humidity monitoring inside enclosure (<40% RH)
• Grounding resistance measurement (document seasonal variations)

Quarterly:

• Internal inspection with borescope for early corrosion detection
• Dielectric testing of all insulation barriers
• Calibration of adaptive resistance control system

Annual:

• Full corrosion assessment using ultrasonic thickness testing
• Nano-coating renewal on critical connections
• Comprehensive protection coordination study with updated grid parameters

4.3 Rapid Response Framework

Typhoon Protocol (Philippines/Thailand):

• Pre-storm: Automatic resistance adjustment to maximum fault current setting
• During storm: Remote monitoring with hourly health checks
• Post-storm: 24-hour on-site inspection team deployment within 8 hours of clearing

Salt Corrosion Emergency Response:

• Condition-based replacement of critical components before failure
• Mobile coating restoration units for field application of protective nano-coatings
• 72-hour maximum delivery guarantee for replacement parts from regional hubs

4.4 Regional Support Infrastructure

Strategic Service Centers:

• Bangkok Hub: Covers Thailand, Cambodia, Laos with 24/7 technical support
• Ho Chi Minh Center: Specializes in high-humidity applications with mobile testing laboratory
• Manila Facility: Focuses on island grid applications with marine corrosion expertise

Knowledge Transfer Program:

• Multilingual operation manuals (Thai, Vietnamese, Tagalog, English)
• Quarterly technical workshops on coastal power quality management
• Digital twin-based training simulators for maintenance personnel
• "SaltGuard" maintenance packages with pre-emptive component replacement schedules

By integrating advanced materials science with intelligent grid technologies, these specialized grounding transformers provide Southeast Asian coastal industries with unprecedented reliability despite extreme environmental challenges. This solution doesn't merely address grounding requirements—it creates a foundation for sustainable industrial growth while supporting regional renewable energy integration goals. With documented ROI of 2.1 years through reduced downtime and extended equipment life, this approach represents the future of resilient power infrastructure in challenging environments.
