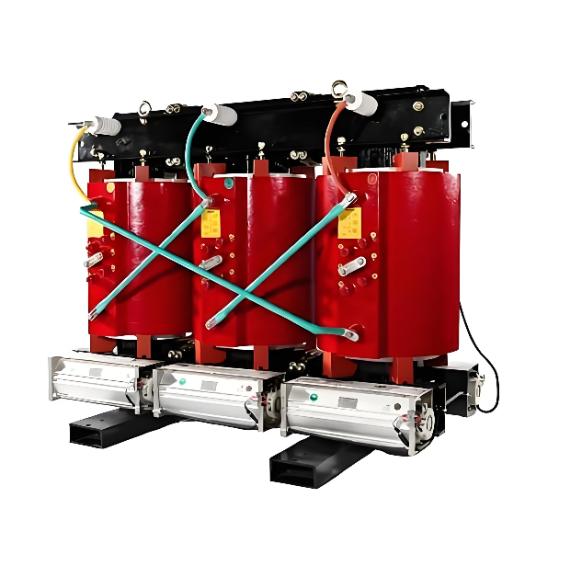

Three-Phase Cast Resin Maintenance-Free Dry-Type Distribution Transformer -10kV 10.5kV 15kV

  • Three-Phase Cast Resin Maintenance-Free Dry-Type Distribution Transformer -10kV 10.5kV 15kV
Key attributes
Brand Vziman
Model NO. Three-Phase Cast Resin Maintenance-Free Dry-Type Distribution Transformer -10kV 10.5kV 15kV
Rated voltage 15kV
Rated frequency 50/60Hz
Rated capacity 200kVA
Series SG(B)
Product descriptions from the supplier
Description

Maintenance-Free Dry-Type Distribution Transformer Products Description

As a specialized provider of 10kV/10.5kV/15kV  three-phase cast resin maintenance-free dry-type distribution transformer, we deliver high-reliability power solutions tailored for commercial, industrial, and utility grid applications.
Our cast resin maintenance-free dry-type transformer integrate advanced epoxy casting technology and a maintenance-free design, eliminating the need for regular upkeep while ensuring stable performance. Optimized for 10kV–15kV power distribution networks, they feature fireproof, oil-free operation (no leakage risk) and low-noise performance—making them ideal for sensitive scenarios like high-rise buildings, hospitals, data centers, and urban substations.
Maintenance-Free Dry-Type Distribution Transformer Feature
  • High insulation level (Hi) and strong overload withstand ability: Both the low- and high-voltage coils use NOMEX paper for insulation purpose (insulation level C 220℃); transformers’ insulating property reaches level H (180℃) and the system has 40℃ margin, thus the product has strong overload withstand ability. If the product is not accompanied with a fan, it can withstand 20% overload condition for a while; if it is equipped with a fan, it can run under 50% overload condition for a while.
  • Low partial discharge: Compared with other insulating materials, NOMEX paper is characterized by strong electric resistance ability and low permittivity, and it makes distribution of electric field inside the transformer product more reasonable, thus lowering partial discharge.
  • High mechanical strength and crack-free: NOMEX paper withstands contraction, compression, and thermal shock; it is highly elastic but not easily aging. Coils made from NOMEX paper do not easily crack and will be less sensitive to temperature and dust.
  • Efficient use of energy: Chemically, NOMEX paper is incombustible, and non-toxic; meanwhile, it is recyclable.
  • Flexible design: Transformers of the series can be flexible designed without mold or specially designed based on customer’s requirement. Supply period is short.

Maintenance-Free Dry-Type Distribution Transformer Product Technology

  • Soundproofing structure of transformer iron core
  • Tensioning structure of lead
  • Coil structure of transposed conductor
  • Blowing device of transformer
  • Rectangular adjustable mold
  • Secondary winding connection structure of dry transformer
  • Disassembly and tap structure of the transformer high-voltage coil
  • Positioning piece of the electrostatic ring on the upper part of the transformer coil
  • Single-phase drum-shape excitation-free branch connection switch with a shield structure

Maintenance-Free Dry-Type Distribution Transformer Parameter

  • Rated voltage: 10 kV, 16 kV
  • Type of connection group: Dyn11 or Yyn0
  • Rated low voltage: 0.4 kV
  • Branch connection range: ±2 × 2.5%, ±5%, etc

Tip:Due to technical improvement, performance parameters may be changed.Actual performance parameters are subject to the final technical agreement.Rated capacity indicates capacity of the transformer under the natural air-cooling (AN) conditions. If forced air-cooling (AF) is used, the capacity can be increased by 50% temporarily. If you have special requirements, please contact Sunel.

Rated capacity (kVA) Impedance (%) No-load loss (W) Load loss (W)(75℃) No-load current (%) Noise (dB) Weight (Kg)
100 4 350 1360 0.9 42 600
160 4 470 1850 0.9 43 760
200 4 540 2200 0.8 43 920
250 4 630 2400 0.8 45 1080
315 4 780 3020 0.7 46 1230
400 4 870 3480 0.7 47 1510
500 4 1030 4200 0.6 48 1690
630 4 1190 5130 0.5 49 2070
630 6 1160 5180 0.5 50 1810
800 6 1350 5900 0.4 51 2020
1000 6 1580 6950 0.4 51 2465
1250 6 1870 8310 0.3 52 2850
1600 6 2190 9980 0.3 53 3495
2000 6 2730 12100 0.25 53 4150
2500 6 3230 14900 0.25 54 5110
3150 6 3840 17710 0.25 55 6380

Documentation Resource Library
Vziman IEC/ ANSI Dry-Type Power transformer selection catalog
Restricted.
Vziman IEC/ ANSI Dry-Type Power transformer selection catalog
Catalogue
English
Consulting
Consulting
FAQ
Q: In which scenarios are maintenance-free cast resin dry-type distribution transformers most suitable?
A:

These transformers excel in locations with strict safety and environmental requirements, such as high-rise buildings, hospitals, data centers, urban substations, and harsh-climate areas. Their maintenance-free attribute reduces downtime, while the cast resin structure ensures fire and explosion protection—critical for sensitive power supply scenarios.
Q: What are the key benefits of your maintenance-free three-phase cast resin dry-type distribution transformers?
A:

Our transformers feature a maintenance-free design that eliminates regular upkeep costs, paired with cast resin insulation for fireproof, oil-free, and low-noise operation. They boast high mechanical strength, excellent overload capacity, and compliance with international standards like IEC, making them ideal for long-term reliable use in industrial and commercial applications.
