Low Loss Step Down Dry-Type Epoxy-Resin Distribution Transformer-17.5kV 20kV 35kV

  • Low Loss Step Down Dry-Type Epoxy-Resin Distribution Transformer-17.5kV 20kV 35kV
Key attributes
Brand Vziman
Model NO. Low Loss Step Down Dry-Type Epoxy-Resin Distribution Transformer-17.5kV 20kV 35kV
Rated voltage 35kV
Rated frequency 50/60Hz
Rated capacity 630kVA
Series SCB
Product descriptions from the supplier
Description

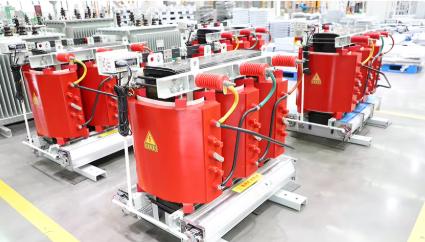

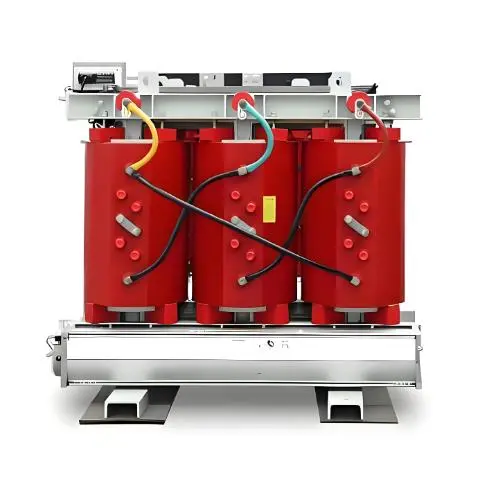

Dry-Type Epoxy-Resin Distribution Transformer Product Description
Our 17.5kV/20kV/35kV Low Loss Step Down Dry-Type Epoxy-Resin Distribution Transformer is engineered to deliver efficient, reliable power conversion for medium-to-high voltage distribution networks. Adopting advanced epoxy resin casting technology and a three-phase step-down design, this transformer achieves ultra-low energy loss, significantly reducing operational costs for industrial and utility applications. As a dry-type unit, it features an oil-free, fireproof structure that eliminates leakage risks and meets strict safety and environmental standards. Compliant with international certifications such as IEC and ANSI, it boasts stable performance, strong environmental adaptability, and long service life, making it an ideal solution for scenarios requiring high safety, efficiency, and low maintenance.
Dry-Type Epoxy-Resin Distribution Transformer Key Features
  • Low Loss Performance: Optimized core and winding design minimizes no-load and load losses, improving energy efficiency and reducing long-term operational costs.
  • Epoxy Resin Casting: High-quality epoxy resin insulation ensures excellent electrical performance, moisture resistance, and dustproof capability, suitable for harsh working environments.
  • Step-Down Precision: Stable three-phase step-down conversion from 17.5kV/20kV/35kV to low voltage , ensuring consistent power supply for downstream equipment.
  • Strong Adaptability: Designed to withstand extreme temperatures (-40℃ to +120℃), humidity, and dust, suitable for both indoor and outdoor installation in diverse climates.
  • Low Noise & Low Maintenance: Advanced core lamination and structural design reduce operational noise; maintenance-free insulation system lowers upkeep costs and downtime.
  • International Compliance: Meets IEC 60076, ANSI C57.12 standards, with multiple certifications to support global market applications.

Dry-Type Epoxy-Resin Distribution Transformer Key attributes

Frequency 50 Hz, 60 Hz Input Voltage 11 kV, 6 kV, 10 kV, 35 kV, 69 kV, 20kV
Output Voltage 220 V, 380 V, 400 V, 440 V, 480 V, 11 kV Phase Three
Place of Origin China Model Number SCB
Brand Name Vziman Coil Number AUTOTRANSFORMER
Coil Structure Toroidal Low Voltage 10.5kv,0.4kv etc, as customized
Certification CE IEC GOST Type power transformer, distribution transformer
Material Copper/Aluminum Standard IEC/GB
High Voltage 6.6kv,10kv,13.8kv,15kv,22kv,33 kv,35kv as customized Vector Group Dyn11/Yyn0
OEM services Provided
Dry-Type Epoxy-Resin Distribution Transformer Operating Conditions
  • Ambient Temperature: Operating temperature range: -40℃ to +40℃; Maximum average temperature over 24 hours: ≤35℃; Maximum temperature in hottest month: ≤30℃ (average value over many years).
  • Relative Humidity: Maximum relative humidity ≤95% (ambient temperature at 25℃); No condensation or icing on the transformer surface.
  • Altitude: Installation altitude ≤1000m above sea level. For installations above 1000m, derating is required according to relevant international standards (IEC 60076) to ensure stable performance.
  • Installation Environment: Install in a well-ventilated, dust-free, non-corrosive gas, non-explosive and flammable environment; Avoid direct sunlight, heavy rain, and severe vibration (vibration acceleration ≤0.1g).
  • Cooling Condition: Natural air cooling (AN) under normal operating conditions; For high-load scenarios, forced air cooling (AF) can be equipped to improve load capacity by 30%-50%.

Documentation Resource Library
Vziman IEC/ ANSI Dry-Type Power transformer selection catalog
Restricted.
Vziman IEC/ ANSI Dry-Type Power transformer selection catalog
Catalogue
English
Consulting
Consulting
FAQ
Q: What makes epoxy-resin distribution transformer achieve low loss and energy-saving effects?
A:
The ultra-low loss performance is attributed to the optimized core and winding design. This design minimizes both no-load losses and load losses during operation, significantly improving energy efficiency and reducing long-term operational costs for industrial and utility applications.
Q: What environmental adaptability do epoxy-resin distribution transformer have?
A: They are designed to withstand extreme temperatures ranging from -40℃ to +120℃, as well as harsh conditions such as high humidity and dust. With strong environmental adaptability, they are suitable for both indoor and outdoor installation in diverse climate environments.
Q: In terms of operation and maintenance, what advantages do epoxy-resin distribution transformers have?
A: They feature low noise and low maintenance. Advanced core lamination and structural design reduce operational noise; the maintenance-free insulation system eliminates the need for regular oil replacement and related maintenance work, lowering upkeep costs and equipment downtime.
Q: What international standards and certifications do epoxy-resin distribution transformers comply with?
A: They fully meet international standards such as IEC 60076 and ANSI C57.12, and are equipped with multiple related certifications. This compliance ensures stable product performance and supports global market applications.
