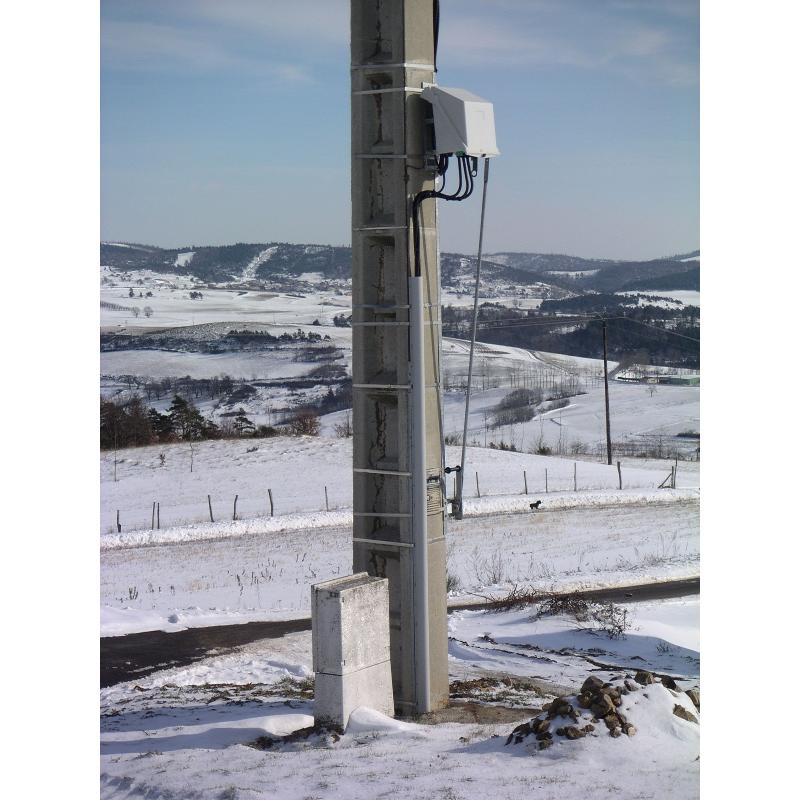

LV pole mounted Circuit breaker D165T
Key attributes
| Brand | Vziman |
| Series | D165T |
Product descriptions from the supplier
Description
The protection and management of MV / LV transformers in rural areas requires the use of specific Circuit Breakers adapted to significant load imbalances and thus guarantees the total use of the installed power even in unbalanced conditions. These devices (4 poles - 3 protected) use air-break technology with chambers with metal partitions to cut the arc.
Technical information:
| Dimensions | |
|---|---|
| Weight | 17 kg |
| Height | 550 mm |
| Width | 370 mm |
| Length | 400 mm |
| Standards | |
| Standards | HN 63-S-11 |
| Electrical values | |
| Rated voltage (Ur) | 0.44 kV |
| Rated current | 165 A |
| Rated short-circuit breaking capacity | 4 kA |
| Rated short-circuit making current | 6.8 kA |
| Rated short-time withstand current (1s) | 4 kA/s |
| 10 kV | |
| Lightning impulse withstand level of voltage (1.2/50) | 20 kV |
| Features | |
| Degree of protection | IP31 |
| Output number | 1 |
| Conductor size | 25 - 70mm² |
| Temperatures | |
| Operating temperature | -25 ... 50 °C |
| Storage temperature | -25 ... 70 °C |
Documentation Resource Library
FAQ
Public.
Brochure de disjoncteur monté sur pôle LV / unité de déclenchement numérique
Brochure
French
Restricted.
LV Pole Mounted breaker / digital trip unit brochure
Brochure
English
Consulting
Q: What pole configuration do LV pole-mounted Circuit breakers adopt?
A:
LV pole-mounted Circuit breakers are four-pole devices, among which three poles are equipped with protection functions to meet the protection needs of MV/LV transformers.
Q: What arc interruption technology do LV pole-mounted Circuit breakers use?
A: They adopt air-break technology, with chambers equipped with metal partitions to effectively cut the arc and ensure stable interruption performance.
Q: Why are LV pole-mounted Circuit breakers suitable for rural power grids?
A: Rural power grids often have significant load imbalances. LV pole-mounted Circuit breakers are specially adapted to this characteristic, ensuring the total use of installed power while protecting MV/LV transformers.
