D165T LV Moulded Case Pole Mounted Breaker Digital Trip Unit

 D165T circuit break Product Description

The D165T circuit break is a professional LV Pole-mounted circuit break with a moulded-case structure, specially engineered for the protection of distribution transformers on low-voltage overhead lines. Rated at 165A and 440V, the D165T circuit break features a 4-pole design, providing reliable and all-round protection against overloads, short-circuits and phase imbalances for transformers, perfectly matching the operational protection needs of low-voltage overhead power distribution systems. Equipped with a high-precision digital trip unit, the D165T circuit break can be flexibly and accurately set to safeguard 50kVA to 160kVA transformers, while its integrated air-arc extinction technology and weather-resistant fiberglass shell with IP31 rating make the LV Pole-mounted circuit break an ideal protection solution for a variety of outdoor low-voltage power distribution scenarios.

 D165T circuit break Product Features

• Precise Digital Protection：The D165T circuit break is built with a dedicated digital trip unit that supports precise parameter setting for different transformer capacities (50kVA-160kVA), realizing targeted and intelligent protection control for the equipment protected by the LV Pole-mounted circuit break.
• Effective Arc Extinction & Protection：Adopting air-arc extinction technology with metal partition chambers, the D165T circuit break achieves a 4000A breaking capacity, which can quickly and effectively cut off arcs during fault conditions, ensuring the protection reliability of the LV Pole-mounted circuit break in low-voltage power distribution systems.
• Robust Outdoor Design：The D165T circuit break has an IP31 protection rating and a durable fiberglass shell, which can effectively resist harsh outdoor environmental factors and ensure the stable and long-term operation of the LV Pole-mounted circuit break in complex outdoor working conditions.

 D165T circuit break Specification

Working Ambient

• Temperature：The D165T circuit break is adaptable to a wide temperature range of -40°C ~ +70°C, with strong temperature resistance to meet the outdoor operation requirements of the LV Pole-mounted circuit break in different climate zones.
• Humidity：The LV Pole-mounted circuit break can operate normally under 100% humidity conditions, and the D165T circuit break has excellent moisture resistance to avoid performance failure caused by high humidity.
• Altitude：Applicable for use at an altitude of ≤2000m, the D165T circuit break can maintain stable protection performance at this altitude range, matching the installation and operation needs of the LV Pole-mounted circuit break in different topographical areas.
• Wind speed：The LV Pole-mounted circuit break can withstand a maximum wind speed of ≤40m/s, and the structural design of the D165T circuit break ensures its firm and reliable outdoor pole-mounted installation under strong wind conditions.

Note: No fire, no explosion hazards, no chemical c.rrosion and recurrent severe vibration.

 D165T circuit break Technical Parameters

 D165T circuit break Application Scenario

Low-voltage Overhead Power Distribution for Rural Residential Areas

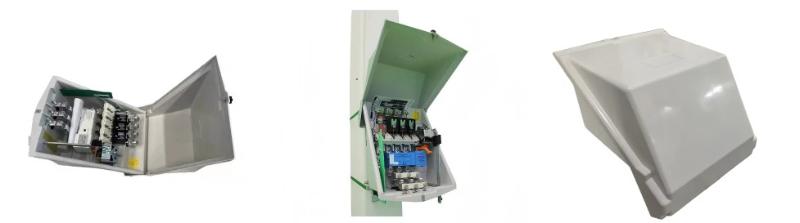

 D165T circuit break Product Photos
