Customized 27kV 34.5kV 35kV HV Skid-Mounted Prefabricated Substation
Key attributes
| Brand | Vziman |
| Model NO. | Customized 27kV 34.5kV 35kV HV Skid-Mounted Prefabricated Substation |
| Rated voltage | 35kV |
| Rated frequency | 50/60Hz |
| Rated capacity | 2000kVA |
| Series | YBW |
Product descriptions from the supplier
Description
HV Skid-Mounted Prefabricated Substation Prefabricated Substation
Discover Vziman’s state-of-the-art prefabricated substation—precision-engineered to deliver premium power distribution performance for modern renewable energy projects. Ideal for solar and wind power applications, this innovative modular split-type substation features a 35kV high-voltage rating and a robust 4000kVA capacity, delivering unrivaled reliability and efficiency even under the harshest operating conditions.
Vziman sets new benchmarks in manufacturing versatile prefabricated substation, supporting voltage levels up to 35kV and capacities up to an impressive 35MVA. Designed for maximum adaptability, these units are perfectly suited for large-scale utility projects. Choose between heavy-duty carbon steel or premium stainless steel enclosures, both rated IP54 to provide exceptional protection against dust, water ingress, and extreme outdoor environments.
We offer fully tailored customization solutions, meticulously engineered to comply with stringent IEC 60076, IEEE, or CSA standards. This ensures seamless alignment with international project specifications, delivering unparalleled quality assurance and client satisfaction.
HV Skid-Mounted Prefabricated Substation Key Features
- High Voltage Rating: Rated up to 35kV, perfectly tailored to meet medium-voltage power distribution requirements.
- Large Capacity Scalability: Boasts seamless scalability up to an impressive 35MVA, delivering exceptional versatility for diverse application scenarios.
- Modular Split Design: Enables flexible configuration, facilitating hassle-free transportation, swift on-site installation, and simplified maintenance procedures.
- Renewable Energy Optimized: Precision-engineered to boost energy conversion efficiency for solar and wind power projects, maximizing overall system performance.
- Durable Enclosure Options: Choose between heavy-duty carbon steel or corrosion-resistant stainless steel enclosures to withstand harsh environmental conditions.
- IP54 Ingress Protection: Offers superior resistance against dust and water ingress, making it ideal for demanding outdoor operational settings.
- Global Standards Compliance: Fully customizable to meet stringent IEC 60076, IEEE, and CSA standards, ensuring universal compatibility for international projects.
- Factory Pre-Assembled & Tested: Delivered as a complete turnkey solution, enabling rapid deployment and minimizing on-site downtime.
HV Skid-Mounted Prefabricated Substation Specifications
|
Cooling Method
|
Oil - immersed Type Transformer
|
Winding Type
|
Two - winding Transformer
|
|
Certification
|
ISO9001 - 2000, ISO9001
|
Usage
|
Single - phase Transformer, Power Transformer, Distribution Transformer
|
|
Frequency Characteristics
|
Power Frequency
|
Shape of Core
|
Three - Limb Core - Type Core
|
|
Brand
|
Winding Material
|
Copper/Aluminum
|
|
|
Capacity
|
4000kVA
|
High Voltage
|
27kV 30kV 33kV 34.5kV 35kV
|
| Core | Core - type Transformer |
Standard
|
IEEE/CSA/IEC
|
|
Transport Package
|
Stretch Film Wrapped/Containerized
|
Origin
|
China
|
Custom configurations are readily available upon request, designed to meet your precise needs and specifications.
|
Model
|
HV (kV)
|
Tapping Range of HV (%)
|
LV (kV)
|
Vector Group
|
No-load loss (kW)
|
Load Loss (kW)
|
Impedance (%)
|
|
SZ13-2000
|
35
|
±3*2.5
|
10
|
Yd11
|
1.84
|
19.2
|
6.5
|
|
SZ13-4000
|
Yd11
|
3.1
|
29.1
|
7
|
|||
|
SZ13-6300
|
Yd11
|
4.5
|
36.7
|
8
|
|||
|
SZ13-20000
|
YNd11
|
12.4
|
82.7
|
8
|
|||
|
SZ13-31500
|
YNd11
|
17.44
|
116
|
10
|

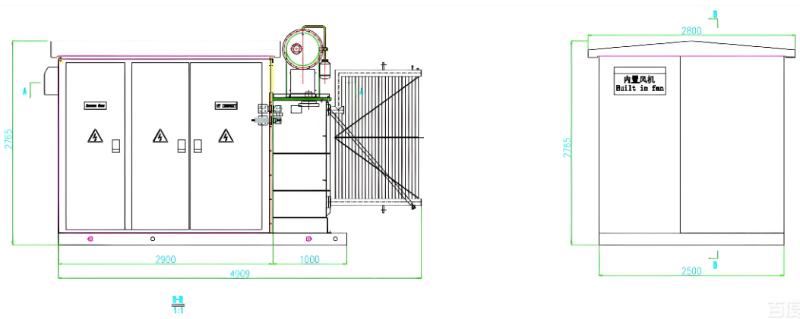

HV Skid-Mounted Prefabricated Substation Drawings & Dimensions
Q: Why is the HV Skid-Mounted Prefabricated Substation suitable for renewable energy projects?
A:
It is precision-engineered for solar and wind power applications, with optimized design to boost energy conversion efficiency, ensuring stable and efficient operation even in harsh conditions, thus maximizing overall system performance.
Q: What advantages does the modular split design bring to the HV Skid-Mounted Prefabricated Substation?
A: The modular split design of the HV Skid-Mounted Prefabricated Substation enables flexible configuration, facilitates easy transportation and quick on-site installation, and simplifies daily maintenance procedures, reducing overall project cycles.
Q: Does the HV Skid-Mounted Prefabricated Substation support customization, and what standards does it comply with?
A: Yes, it provides fully tailored customization solutions. Each HV Skid-Mounted Prefabricated Substation is engineered to comply with stringent IEC 60076, IEEE or CSA standards, aligning with international project specifications.
Q: What application scenarios is the HV Skid-Mounted Prefabricated Substation suitable for besides renewable energy?
A: Beyond solar and wind power projects, the HV Skid-Mounted Prefabricated Substation is also well-suited for large-scale utility projects and other medium-voltage power distribution scenarios requiring high reliability and adaptability.
A: Beyond solar and wind power projects, the HV Skid-Mounted Prefabricated Substation is also well-suited for large-scale utility projects and other medium-voltage power distribution scenarios requiring high reliability and adaptability.
