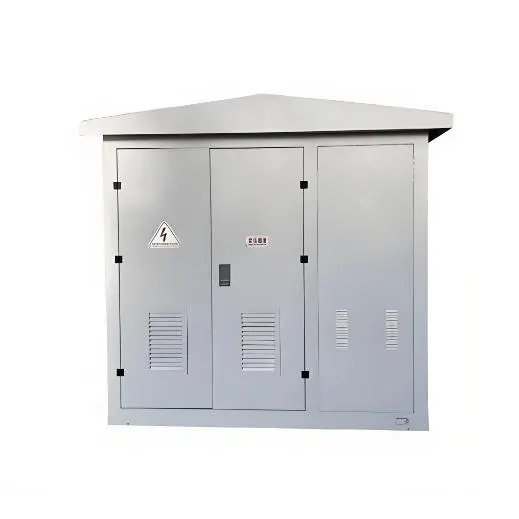

Customizable 10kV 10.5kV 11kV HV Skid-Mounted Substations Manufacturer
Key attributes
| Brand | Vziman |
| Model NO. | Customizable 10kV 10.5kV 11kV HV Skid-Mounted Substations Manufacturer |
| Rated voltage | 11kV |
| Rated frequency | 50/60Hz |
| Rated capacity | 160kVA |
| Series | ZGS |
Product descriptions from the supplier
Description
11kV HV Skid-Mounted Substations Product Description
Vziman Electric Power Technology specializes in manufacturing a full range of prefabricated substations—also referred to as European-style substations—comprising three core modules: transformer units, high-voltage units, and low-voltage units.
Substations enclosures are constructed from premium materials including stainless steel, aluminum alloy, cold-rolled steel, and advanced non-metallic composites, ensuring durability across diverse operating environments. These integrated substations deliver comprehensive electrical functionality, including energy conversion, distribution, transmission, metering, reactive power compensation, system control & protection, and data communication.

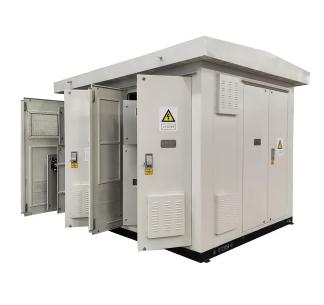

Structurally, they adopt a three-compartment design:
- High-voltage compartment: Accommodates high/medium-voltage switchgear (e.g., ring main units, gas-insulated switchgear) with a maximum rated voltage of 40.5 kV.
- Low-voltage compartment: Houses low-voltage distribution and control components.
- Transformer compartment: Equipped with either three-phase oil-immersed transformers or cast-resin dry-type transformers, tailored to project requirements.
11kV HV Skid-Mounted Substations Features
- Multi-Voltage Compatibility：Customizable for systems, perfectly matching diverse regional grid standards and project requirements.
- Robust Skid-Mounted Structure：Integral skid base enables direct hoisting, no complex civil works required—ensuring rapid deployment and easy relocation for temporary or remote applications.
- Tailored Customization Solutions：Flexible configuration options include transformer capacity adjustment, enclosure material selection (carbon steel/stainless steel), IP rating upgrades, and intelligent monitoring system integration.
- Global Standards Compliance：All products comply with IEC, IEEE, and CSA standards, ensuring seamless compatibility with international power distribution projects.
- High-Impact Weather Resistance：Optimized for harsh outdoor environments, with corrosion-resistant enclosures and sealed internal components to withstand extreme temperatures, dust, and humidity.
- Factory Pre-Assembled & Tested：Delivered as a turnkey solution with full pre-commissioning tests, minimizing on-site installation time and downtime.
11kV HV Skid-Mounted Substations Specification
|
Rated capacity
|
Voltage combinations
|
The join group designator
|
No-load loss
|
Load loss
|
Impedance voltage
|
No-load current
|
||
|
(kVA)
|
High pressure(kV)
|
Taps(%)
|
Low voltage(kV)
|
(W)
|
(W)
|
(%)
|
(W)
|
|
|
30
|
6/6.3/10/10.5/11
|
±5%/±2*2.5
|
0.4
|
Dyn11/Yyn0
|
80
|
600/630
|
4
|
2.3
|
|
50
|
100
|
870/910
|
2
|
|||||
|
63
|
110
|
1040/1090
|
1.9
|
|||||
|
80
|
130
|
1250/1310
|
1.9
|
|||||
|
100
|
150
|
1500/1580
|
1.8
|
|||||
|
125
|
170
|
1800/1890
|
1.7
|
|||||
|
160
|
200
|
2200/2310
|
1.6
|
|||||
|
200
|
240
|
2600/2730
|
1.5
|
|||||
|
250
|
290
|
3050/3200
|
1.4
|
|||||
|
315
|
340
|
3650/3830
|
1.4
|
|||||
|
400
|
410
|
4300/4520
|
|
|||||
|
500
|
480
|
5100/5410
|
1.2
|
|||||
|
630
|
570
|
6200
|
4.5
|
1.1
|
||||
|
800
|
700
|
7500
|
1
|
|||||
|
1000
|
830
|
10300
|
1
|
|||||
|
1250
|
970
|
12000
|
0.9
|
|||||
|
1600
|
1170
|
14500
|
0.8
|
|||||
These substations serves as a critical power distribution unit for electrical cable networks. It is an integrated power supply system equipped with functions for high-voltage control, protection, conversion, and distribution.
Designed for three-phase AC 50Hz systems, it is compatible with transformers featuring a maximum rated capacity of 1600kVA. The substations is widely deployed across diverse scenarios, including industrial and mining enterprises, residential complexes, hospitals, shopping malls, and high-rise buildings.
As a compact prefabricated solution, it stands out as one of the most efficient, convenient, and cost-effective pieces of equipment for power distribution. It ensures safe, straightforward operation, making it an ideal choice for modern power supply networks.
- Ambient temperature: -25ºC~+40ºC
- Altitude: no more than 1000m
- Relative humidity:
- Daily average less than 95% Average value of water vapor pressure less than 2.2kpa
- Monthly average less than 90% Average value of water vapor pressure less than 1.8kpa
- Seismic intensity:less than magnitude 8
- Outside wind speed less than 35m/s
- Place Installation : Apply to the places have no fire,no explosion danger and no chemical corrosion
Q: What installation advantages do 11kV HV Skid-Mounted Substations have?
A:
Equipped with an integral skid base, they support direct hoisting and require no complex civil engineering. Fully pre-assembled and tested at the factory, they enable rapid deployment and minimize on-site installation time.
Q: Are 11kV HV Skid-Mounted Substations customizable, and what options are provided?
A: Yes. Customization options include transformer type/capacity adjustment, enclosure material selection, IP rating upgrade, and intelligent monitoring system integration, all tailored to meet specific project requirements.
Q: Which international standards do 11kV HV Skid-Mounted Substations comply with?
A: All products adhere to IEC, IEEE, and CSA standards, ensuring seamless compatibility with international power distribution projects.
