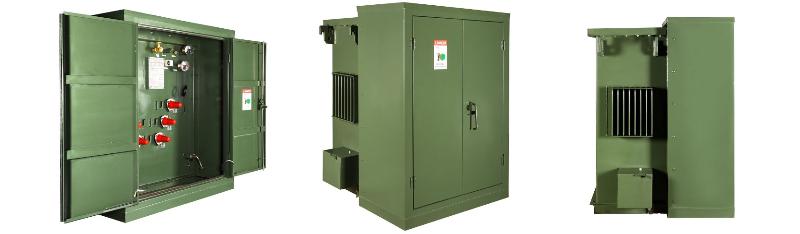

50kVA Three Phase Zig-Zag Grounding Transformer
| Brand | Vziman |
| Model NO. | 50kVA Three Phase Zig-Zag Grounding Transformer |
| Rated frequency | 60Hz |
| Rated capacity | 50kVA |
| Series | SJD |
50kVA Zig-Zag grounding transformer Product Introduction
Vziman 50kVA Zig-Zag grounding transformer are critical components in power networks. Their durability and availability have a significant impact on grid reliability and performance. Vziman does not compromise on quality. Each unit we deliver undergoes rigorous full-acceptance testing.
Vziman offers a comprehensive line of 50kVA Zig-Zag grounding transformer and associated components. Our entire range results from our unique research, development, and manufacturing, making us exceptional in the industry. As a result, we have gained extensive experience in every aspect of power transformer technology. Customers can count on our products’ quality and reliability.
Vziman 50kVA Zig-Zag grounding transformer provide high levels of customization and can be used in a variety of applications. With voltage up to 36 kV and rated power up to 300 KVA, they are appropriate for a variety of applications. Furthermore, the entire range complies with the latest global and regional eco-efficiency standards.
Product Parameters
| Rating | 50kVA |
| Winding Configuration | Zig-Zag or Wye-Delta |
| High Voltage | Up to 36 kV (can be customized) |
| Low Voltage | 380, 400, or 415 V (can be customized) |
| Frequency | 60 Hz |
| Number of Phases | 3 |
| System Neutral Earthing | Solidly Earthed / Resistance Earthed |
| Short-Time Neutral Current | Up to 3000 A |
| Percentage Impedance | ≤5% |
| Max. duration of short time current | 1-10 seconds |
| Cooling method | ONAN, ONAF |
| Installation | Indoor / Outdoor |
| Tapping Range | ±2 × 2.5% |
| Enclosure Options | -Transformer cabinets for any IP degrees with: - CT - VT - Isolation switch |
| Enclosure Type | Type 3R, 3R-Enhanced or Non-Ventilated |
| Core Material | Cold-Rolled, Grain Oriented, Silicon Steel |
| Standard | IEEE/ANSI, CSA |
| Winding Material | Copper, Aluminum |
| Altitude | Up to 1000 m |
| Tap Changer | Off-Load Tap Changer |
Yes. Vziman 50kVA Zig-Zag grounding transformer offers a high level of customization. It can be tailored to meet diverse application needs, complementing Vziman’s comprehensive product line and associated components for flexible deployment.
Q:Does Vziman 50kVA Zig-Zag grounding transformer support customization?
A:Yes. Vziman 50kVA Zig-Zag grounding transformer offers a high level of customization. It can be tailored to meet diverse application needs, complementing Vziman’s comprehensive product line and associated components for flexible deployment.
Q:Does Vziman 50kVA Zig-Zag grounding transformer comply with relevant eco-efficiency standards?
A:Yes. Vziman 50kVA Zig-Zag grounding transformer fully complies with the latest global and regional eco-efficiency standards, meeting environmental and energy-saving requirements for power equipment.
Q:Which application scenarios are suitable for Vziman 50kVA Zig-Zag grounding transformer?
A:Vziman 50kVA Zig-Zag grounding transformer is highly versatile. With voltage up to 36 kV and scalable rated power, it is applicable to a variety of power network scenarios, covering different industrial and grid operation needs.
